Pampa small obstacles PTP 729E

Name: Pampa small obstacles PTP 729E
Brand: Copfer
SKU: 43182
Price: 22953.0 MDL
Availability: InStock
Rating: 5 (1 reviews)

1 187 €

Quantity

Cumpără într-un click

Delivery and installation are not included in the product price. The delivery cost is calculated after placing the order and agreed with the manager.

(+40) 758 50 8888

Proven experience

Over 1500 playgrounds installed in Moldova and Romania
Certified safety

Compliant with EN 1176 & EN 16630; ISO 9001, ISO 14001, ISO 45001
Complete services

Delivery, professional installation, warranty and spare parts in stock

View full details

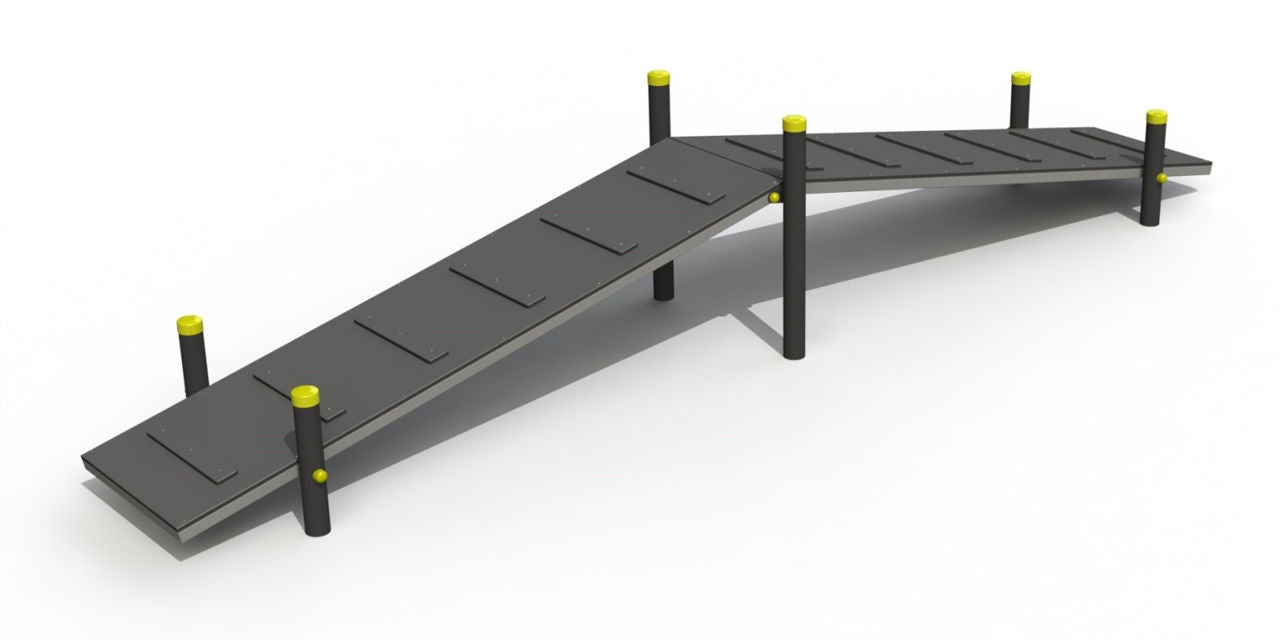

Training ramp made of steel with resistant HDPE floor

The construction will consist of 6 support pillars made of steel pipe with a diameter of at least 76 mm, minimum thickness - 2 mm. The platform casing will be made of profile pipe with dimensions of at least 40x30mm with a thickness of 2mm. The floor of the ramp will be made of HDPE - high density polyethylene without toxic components, with a thickness of at least 15mm.

Technical characteristics: General dimensions of the construction, not less than: Length – 4600mm, Width – 780 mm, Height – 850 mm. The foundation of the construction will have minimum dimensions of LxWxH=300x300x500 mm.

Download DWG drawing
