Swing PTP 52-2

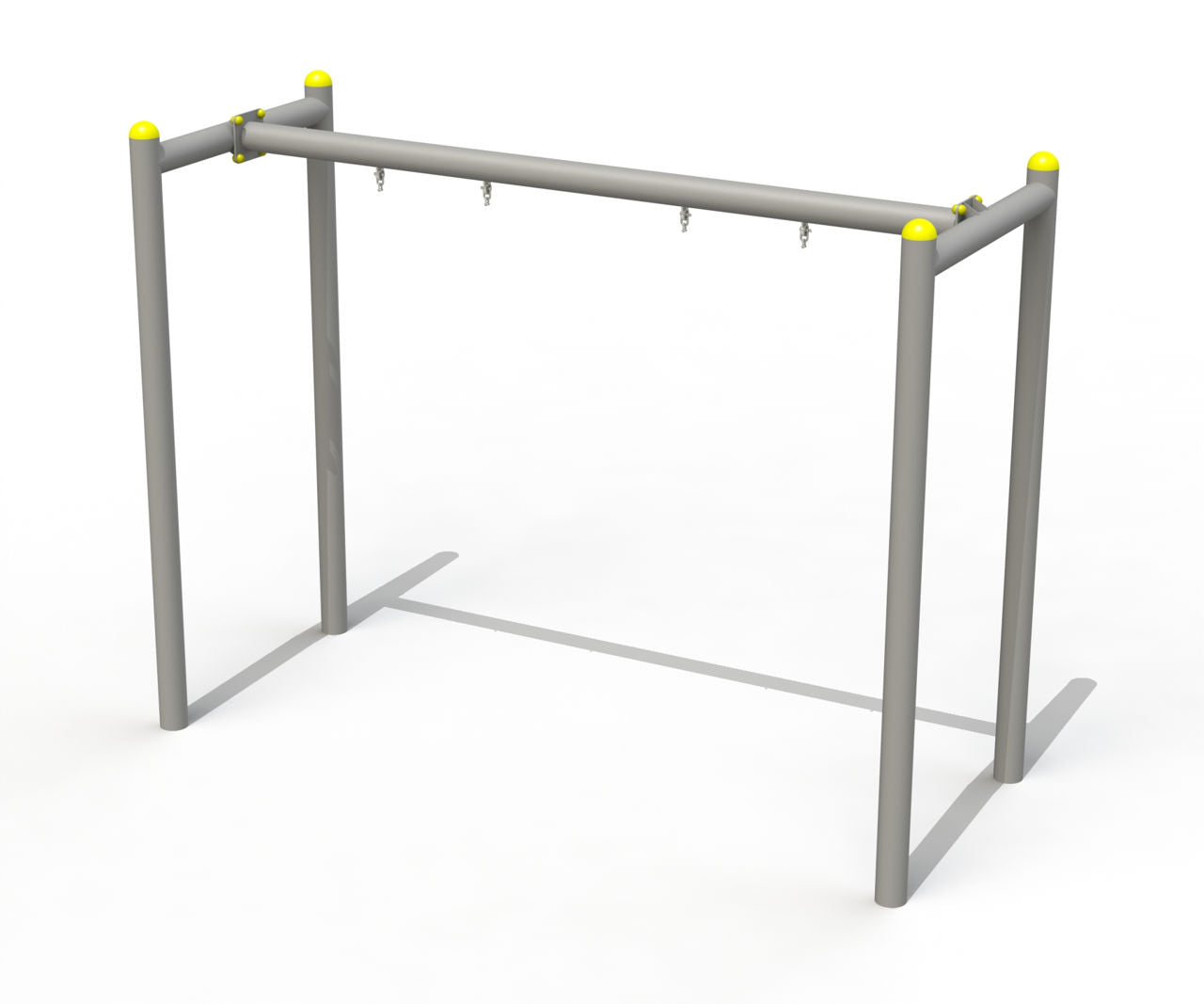

The cradle will consist of 2 sets of load-bearing metal supports, a horizontal metal bar with fixing devices for 2 seats.

Technical characteristics. The supporting metal supports must be made of steel pipe with a minimum section of Ø 114 mm and a thickness of not less than 3 mm, the horizontal metal bar must be made of a steel pipe with a minimum section of Ø 114 mm and a thickness of not less of 3 mm.

The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.

General dimensions of the construction, not less than: Length – 3220 mm, Width – 1600 mm, Height – 2460 mm.

The foundation of the construction will have minimum dimensions of LxWxH=400x400x700mm.
Requirements for installation: To ensure safe and reliable operation, all supporting elements are to be deepened into the ground (ground) not less than 0.70m to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.
