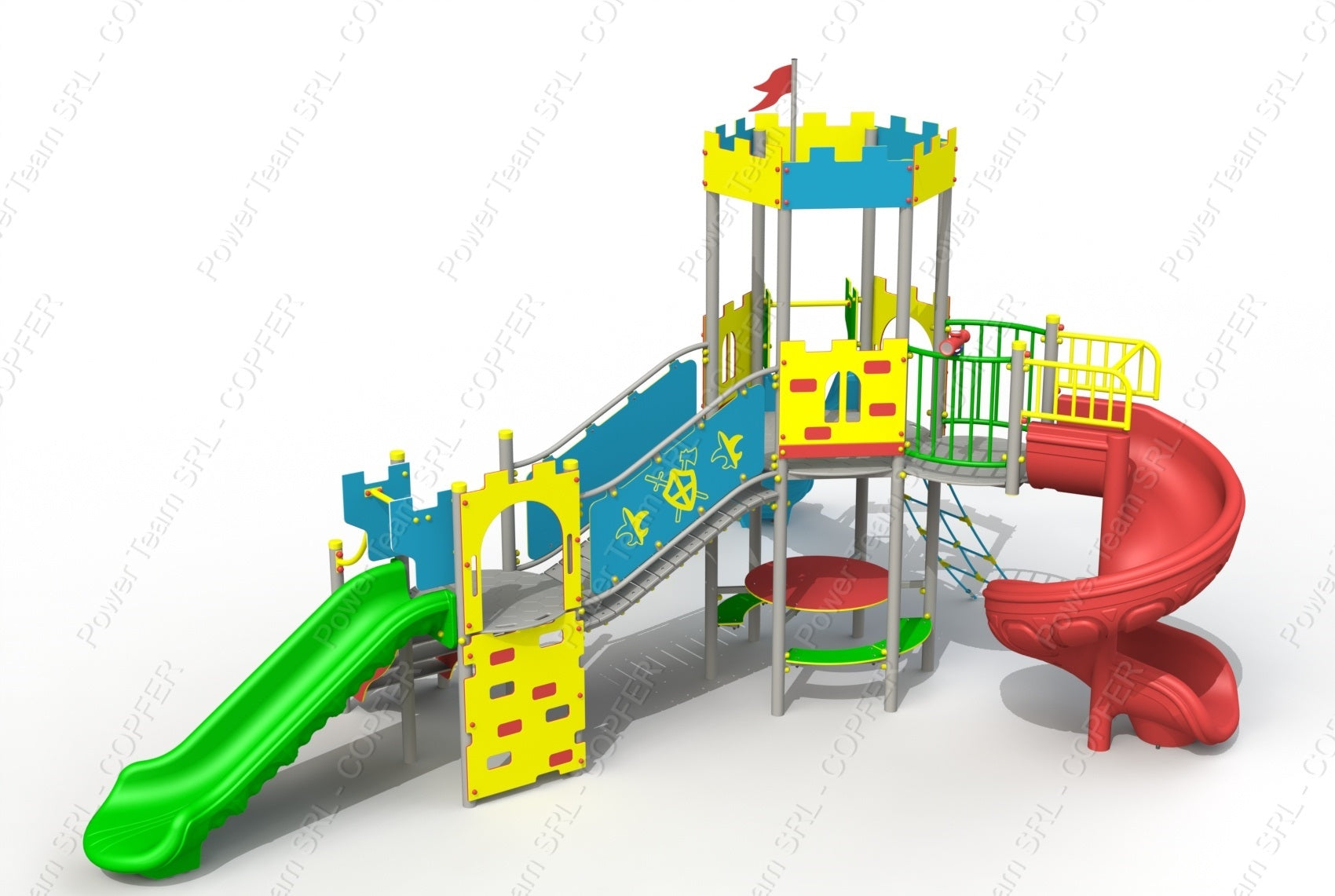

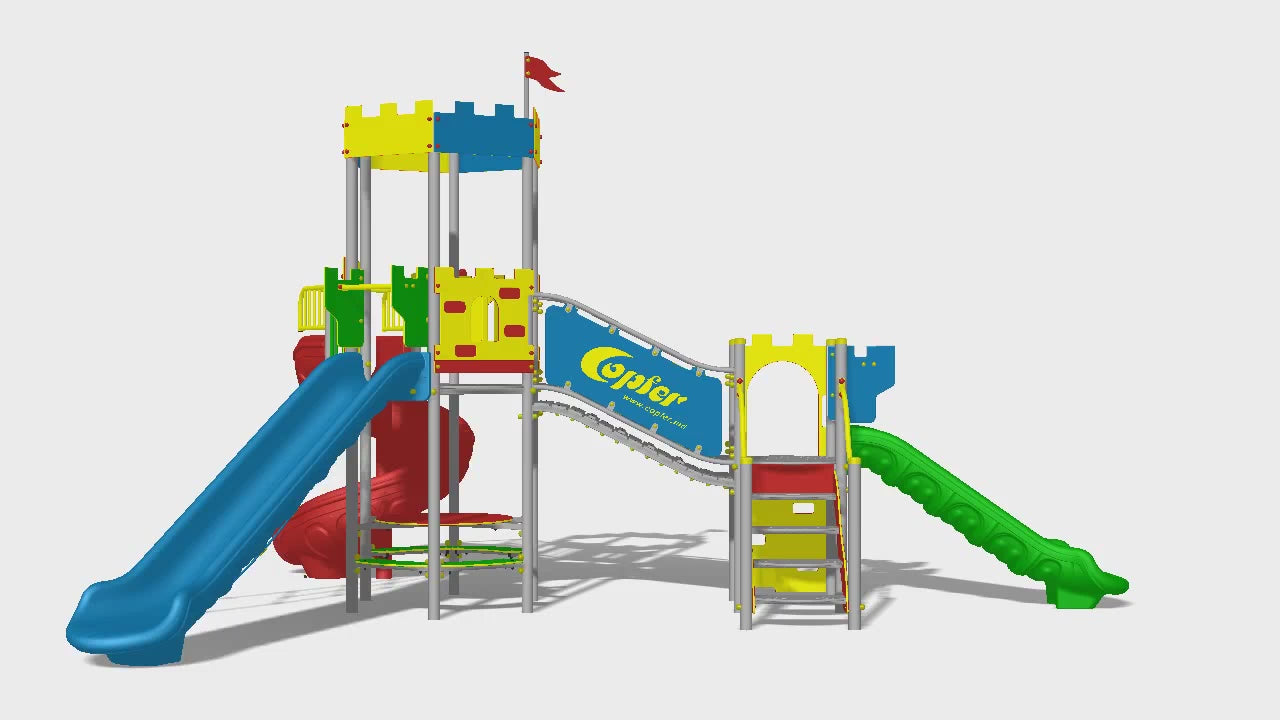

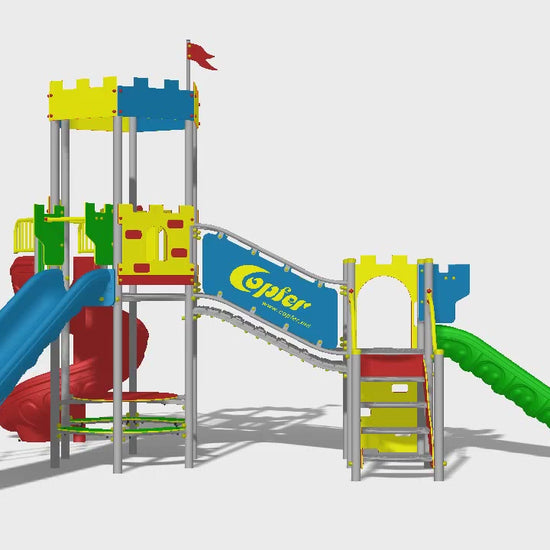

The play complex will consist of a hexagonal tower, a simple tower, a balcony with railings, a large straight slide (H=1.5 m) with a safety bar and 2 side protections, a straight slide (H=1 m) with a safety bar and 2 side protections, spiral slide (H=1.5 m) with safety bar and 2 side protections, 2 "Geamulet" panels, 2 "Ark" type protection panels, reinforced rope climbing net, table with chairs, staircase, climbers of the "Climbing wall" type, walkway with closed "Val" type balustrades, decorative elements.
Age: recommended for children aged 3+.
Designed for simultaneous use by up to 10 children.
Maximum weight of a user : 55 kg.
The construction will consist of support pillars made of steel pipe with a diameter of at least 76mm, minimum thickness - 3mm.
The floor of the hexagonal tower is to be round with a minimum diameter of 1340mm, being made of HDPE - high density polyethylene without toxic components with a multilayer structure of various colors with a thickness of no less than 15mm.
The floor of the simple tower and the balcony will be round with a minimum diameter of 930mm, being made of HDPE - high density polyethylene without toxic components with a multilayer structure of various colors with a thickness of not less than 15mm.
The staircase will have steps and handrails for safe ascent to the platform. Stair steps must not be slippery. The side supports for fixing the steps must be made of HDPE - high-density polyethylene without toxic components with a multilayer structure of various colors with a thickness of not less than 15mm.
The flexible ladder will be made of rope with a size of at least 16mm made of polypropylene woven from 6-fiber reinforced metal with a rubber core, joined by oval plastic elements.
The wall for climbing and the table with the built-in chairs will be made of HDPE - high density polyethylene without toxic components with a multilayer structure of various colors with a thickness of not less than 15mm.
Slides must have:
- the starting area with a bumper, which will make the child sit down, fixed on the side protection elements, made of HDPE (high-density polyethylene without toxic components with a multilayer structure of various colors), with a minimum height of 450 mm and with a thickness of at least 15 mm;
- acceleration zone;
- braking portion.
In order to exclude the trauma of children, the slides will have borders on both sides with a minimum height of 120 mm. The slides will be made of LLDPE polyethylene using the "rotomoulding" technology.
The railings of the passage - height of at least 700 mm, their pipe - section of at least 33 mm.
The railings of the crossing and the panels of the hexagonal tower will have decorative elements made of HDPE - high density polyethylene without toxic components with a multilayer structure of various colors with a thickness of not less than 10mm.
To avoid the penetration of water from precipitation, the pillars are covered with plastic caps.
The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.
Materials: steel, HDPE, plastic, rubber, LLDPE.
Technical characteristics. General dimensions of the construction, no less than: Length – 6440mm, Width – 5400mm, Height – 3800mm. Height of platforms from the ground: level 1 - 1000mm, level 2 - 1500mm, level 3 - 1500mm.
The foundation of the construction will have minimum dimensions of LxWxH=400x400x700 mm.
Requirements for installation: To ensure safe and reliable operation, all supporting elements are to be deepened into the ground (ground) not less than 0.70m to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.
