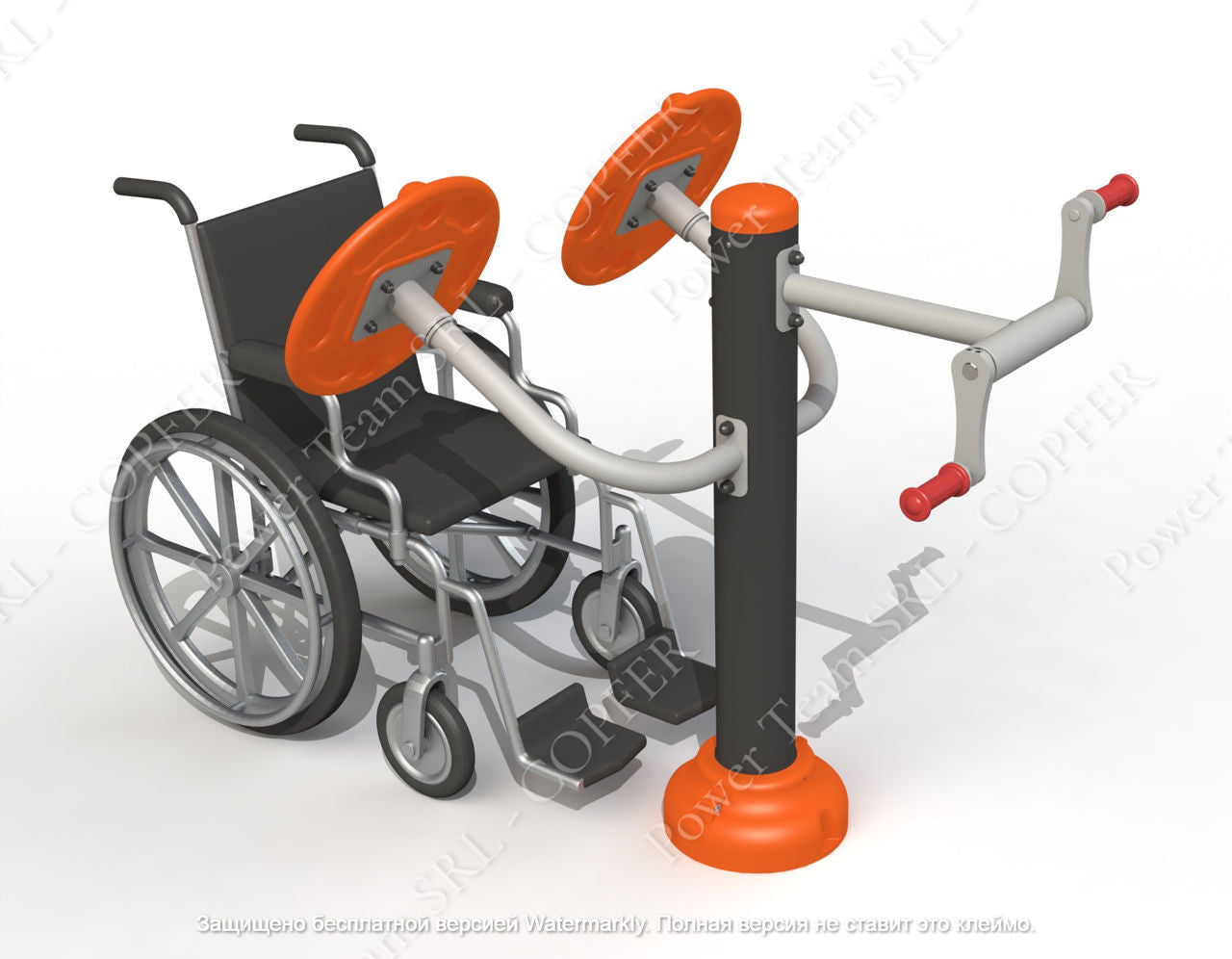

Double fitness machine for stretching muscles for people with disabilities PTP 532Т

Components : support pillar, lower base, hand wheels.

The support pillar of the equipment needs to be made of steel pipe, with a wall thickness of at least 3 mm and a minimum diameter of 130 mm, being mounted on a platform with holes for fixing with the foundation.

The static connected elements will have a minimum diameter of 48 mm, being made of steel pipe with a minimum wall thickness of 2.8 mm. The wheels will be made of LLDPE polyethylene by "rotomoulding" technology. The handles will be covered with rubber to prevent the limbs from slipping

All articulated nodes will be equipped with reinforced closed-type bearings. All elements heads, screws, nuts need to be covered with protective plastic covers.

The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.

Materials : steel, LLDPE, plastic.

The foundation of the construction will have minimum dimensions of LxWxH=300x300x500 mm.

Requirements for installation : To ensure safe and reliable operation, all supporting elements are to be deepened into the soil (earth) not less than 0.50m to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.

Minimum dimensions : Length: 1075 mm, Width: 1070 mm, Height: 1150 mm. In addition to the space occupied by the equipment, according to the regulations in force, a minimum impact area of ​​1.5 m will be provided.
